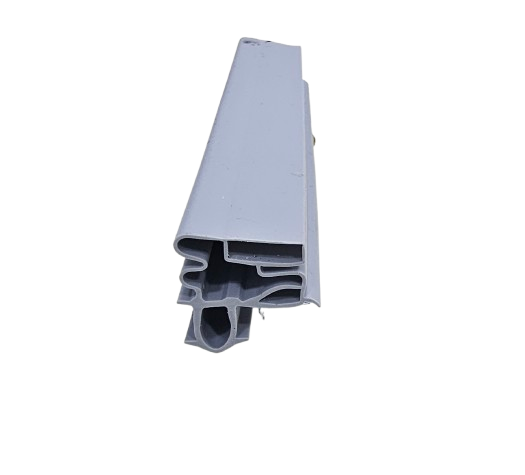

Gasket Profile EKT-G29
SKU: EKT-G29
- Box Contains
- 54 pieces
- Default Length
- 250.00 cm
- Dimension Type
- Both
- Available Colors
-
BLACK In StockGray In Stock
- Quick Links
Description
The G29 refrigerator door gasket by EKT Gasket is engineered for high-performance sealing in industrial refrigerators, freezers, and cold rooms. It ensures maximum energy efficiency and long-term durability under heavy use.
🛠 Technical Specifications:
Material:
High-quality Food Grade PVC.
Temperature Range:
Operates from -40°C to +70°C while maintaining flexibility.
Applications:
Commercial refrigerators and freezers
Cold storage doors
Food display equipment
Chemical Resistance:
Resists oils, greases, detergents, and sanitizers.
Flexibility & Hardness:
Shore A 65 ±5 for optimal sealing.
Installation Method:
Push-in fit
Optional magnetic seal available
Magnetic Seal:
High-strength magnet with up to 1200 Gauss holding force.
Certifications:
FDA compliant
RoHS certified
REACH compliant
Service Life:
Designed to last up to 10 years under normal operating conditions.
Available Colors:
White, Light Grey, Black (custom colors upon request).
Customization Options:
Custom lengths and dimensions
Magnetic or non-magnetic versions
Additional Features:
UV-resistant for outdoor or high-light exposure environments.
❓ FAQs:
Is G29 suitable for heavy-duty use?
Yes, it is designed for industrial and commercial environments.
Can I request custom sizes?
Absolutely! We offer made-to-measure gaskets.
Is the material antibacterial?
Yes, it's made from Food Grade materials resistant to bacterial growth.
📈 Why Choose EKT Gasket G29?
High-quality local manufacturing
Over 15 years of industry experience
Fast shipping across GCC and the Middle East
Free technical support
🛠 Technical Specifications:
Material:
High-quality Food Grade PVC.
Temperature Range:
Operates from -40°C to +70°C while maintaining flexibility.
Applications:
Commercial refrigerators and freezers
Cold storage doors
Food display equipment
Chemical Resistance:
Resists oils, greases, detergents, and sanitizers.
Flexibility & Hardness:
Shore A 65 ±5 for optimal sealing.
Installation Method:
Push-in fit
Optional magnetic seal available
Magnetic Seal:
High-strength magnet with up to 1200 Gauss holding force.
Certifications:
FDA compliant
RoHS certified
REACH compliant
Service Life:
Designed to last up to 10 years under normal operating conditions.
Available Colors:
White, Light Grey, Black (custom colors upon request).
Customization Options:
Custom lengths and dimensions
Magnetic or non-magnetic versions
Additional Features:
UV-resistant for outdoor or high-light exposure environments.
❓ FAQs:
Is G29 suitable for heavy-duty use?
Yes, it is designed for industrial and commercial environments.
Can I request custom sizes?
Absolutely! We offer made-to-measure gaskets.
Is the material antibacterial?
Yes, it's made from Food Grade materials resistant to bacterial growth.
📈 Why Choose EKT Gasket G29?
High-quality local manufacturing
Over 15 years of industry experience
Fast shipping across GCC and the Middle East
Free technical support
Dimension Specifications

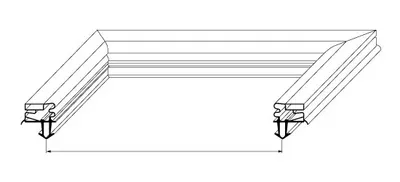

Plug to Plug Measurements

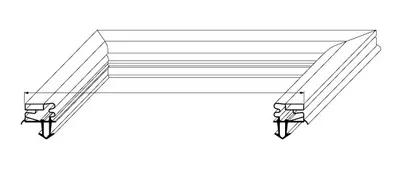

External Measurements
Magnetic Compatible
Strong Magnetic Strip 8.7 mm x 2.2mm
- Magnet SKU
- MAGNETIC-STRIP-01
- Color
- Black
- Default Roll Length
- 250.00 cm
- Magnet Per CM
- 1.000 pcs
| Reference Number | Manufacturer | Type | Details |
|---|---|---|---|
| 1067 | LF | OEM | |
| 299-M | DSU | OEM | |
| 511 | EMMEPLAST | OEM | |
| 9275 | GEV | OEM | |
| JPC-145 | GASKETLINE | OEM |
LF
1- 1067 OEM
DSU
1- 299-M OEM
EMMEPLAST
1- 511 OEM
GEV
1- 9275 OEM
GASKETLINE
1- JPC-145 OEM
No OEM Parts Available
This gasket does not have any OEM parts in our database.
Gasket Profile EKT-G29
Installation Guide
Installation Tips:
- Watch the installation video for proper guidance
- Ensure surface is clean and dry before installation
- Follow the recommended measurements for optimal fit
